Matrix

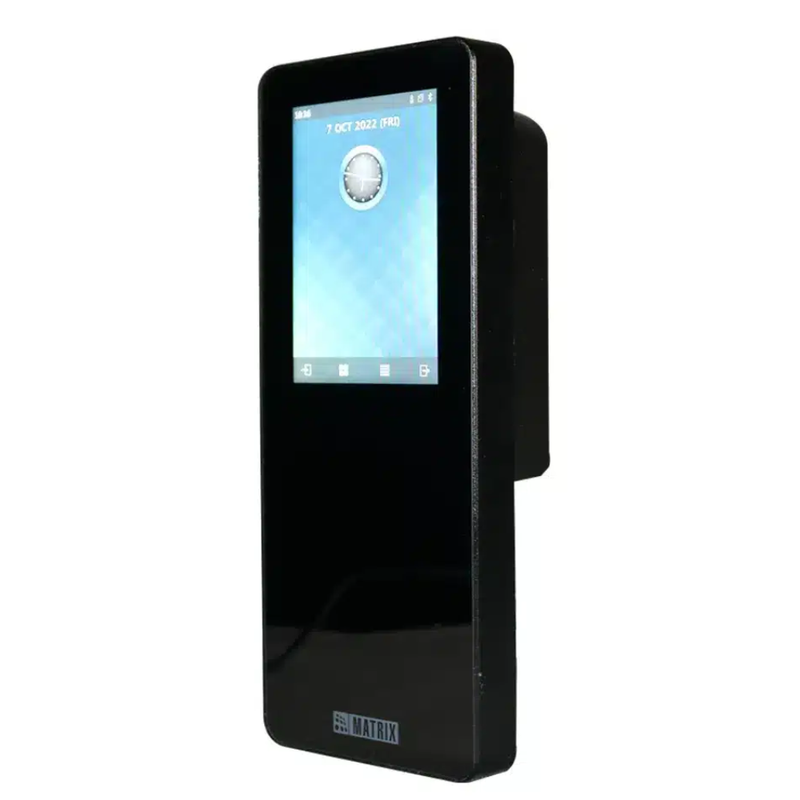

COSEC ARGO FOE212 EM Prox Card based Time-Attendance and Access Control Terminal
SKU: COSEC ARGO FOE212
Select required product from options below:
Card Support: EM Prox
About Product
The Matrix COSEC ARGO Fingerprint Series offers ultra-fast biometric identification with multi-credential support including fingerprint, card, BLE, and PIN. Designed for reliability and performance, each model supports 50,000 users, 500,000 events, and multiple connectivity options like Wi-Fi, PoE, Ethernet, USB, and 3G/4G/LTE. The COSEC ARGO FOE212 supports EM Prox cards for standard access needs, the FOM212 supports Mifare Classic cards for secure communication, and the FOI212 supports HID iClass cards for advanced authentication. Compact, durable, and intelligent, this series is ideal for modern time-attendance and access control applications.
Key Specs
- BLE: Yes, Built-in (8m Range)
- PoE: Yes (IEEE 802.3 af)
- USB: 1 Micro-USB Port (Data Transfer and 2G-3G Dongle)
- Wi-Fi: Yes (IEEE 802.11 b/g/n)
- RS-232: Yes
- Display: Yes
- Wiegand: IN/OUT Available
- 3G/4G/LTE: Yes
- RF Option: EM Prox Card Support (Inbuilt)
- Display Size: 3.5"
- Event Buffer: 500,000 Events
- Cards Per User: -
- Face Templates: NA
- Door Lock Power: 12V DC @ 0.5A (Power to external Lock from Device) 30V DC @2 A (Power to lock from External power source)
- Door Lock Relay: 30V DC @ 2 A, Form C, DPDT Relay
- Door Status Sense: Yes
- Credential Support: Fingerprint, RF Card, PIN and Bluetooth
- Templates per User: Up to 10 (Single Template per Finger Mode) Up to 5 (Dual Template per Finger Mode)
- Exit Switch/Exit Reader: Yes
- Max.Finger Template Storage: 25,000 in 1: N Mode and 100,000 in 1:1 Mode
Or
Product Specifications
General
Credential Support
Fingerprint, RF Card, PIN and Bluetooth
RF Option
EM Prox Card Support (Inbuilt)
IP Rating
IP65 (Complies IEC 60529 Standard)
Capacity
Max.Users
50,000
Face Templates
NA
Max.Finger Template Storage
25,000 in 1: N Mode and 100,000 in 1:1 Mode
Event Buffer
500,000 Events
Templates per User
Up to 10 (Single Template per Finger Mode) Up to 5 (Dual Template per Finger Mode)
Cards Per User
-
FACE RECOGNITION
Algorithm
NA
Fake Face Detection
NA
Face Identification
NA
Face Enrolment
NA
Communication
Ethernet
Yes (10/100 Mbps)
PoE
Yes (IEEE 802.3 af)
RS-232
Yes
Wi-Fi
Yes (IEEE 802.11 b/g/n)
BLE
Yes, Built-in (8m Range)
Mobile Broadband
-
3G/4G/LTE
Yes
Wiegand
IN/OUT Available
USB
1 Micro-USB Port (Data Transfer and 2G-3G Dongle)
Interface
Exit Switch/Exit Reader
Yes
Door Status Sense
Yes
Door Lock Relay
30V DC @ 2 A, Form C, DPDT Relay
Door Lock Power
12V DC @ 0.5A (Power to external Lock from Device) 30V DC @2 A (Power to lock from External power source)
Aux-In
-
Aux-Out
-
HARDWARE
CPU
800 MHz ARM Cortex A8 Based Processor
Memory
512 MB Flash + 512 MB DDR3 RAM
Display
Yes
Display Size
3.5"
LED
-
Buzzer
Yes
Keypad
NA
Operating Temperature
0°C to +50°C
Humidity
5% to 95% RH Non – Condensing
Tamper Detection
Yes
Power
12V DC @ 2A
Dimension(W x H x D)
186mm(H) x 74mm(W) x 50mm(D)
Weight
0.550 Kgs
Compatibility
System Integration
API for Software Integration Operational Modes
Operational Modes
Direct Door with COSEC CENTRA / COSEC VYOM Panel Door with COSEC PANEL200P
Sensor
Sensor Name
Suprema Optical Sensor – SFM6030
Sensor Technology
Optical Technology
Encryption
256-bit AES
Waterproof
-
False Acceptance Ratio (FAR)
-
False Rejection Ratio (FRR)
-
Resolution(dpi)
500
Sensing Area
16.0mm x 18.0mm
Template Size
384 bytes
image Size(Pixel)
288 x 288
Applications Support
Access Control
Yes
Time-Attendance
Yes
Visitor Management
Yes
Contract Worker's Management
Yes
Cafetaria Management
Yes
Job Processing & Costing
Yes
